Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications.
All generator sets are factory build, and production tested.
User Rating: 4 / 5
- Pars Jeneratör
- Aksa Generator APD 135 A

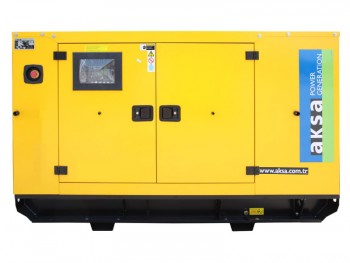

Aksa Generator APD 135 A
- Aksa Generator
- General Characteristics
- Model Name: APD 135 A
- Frequency (Hz): 50
- Fuel Type: Diesel
- Engine Made and Model: AKSA - A4CRX54TI
- Alternator Made and Model: Aksa - AK 4110
- Control Panel Model: DSE 6120
- Canopy: ACP 6A
- 3 Phase, 50 Hz, PF 0.8
- STANDBY RATING ( ESP ):
- Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source.
- ESP is in accordance with ISO 8528-1.
- Overload is not allowed.
- PRIME RATING ( PRP ):
- Applicable for supplying power to varying electrical load for unlimited hours.
- PRP is in accordance with ISO 8528-1.
- 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
- Voltage
- Voltage: 400/231
- STANDBY RATING ( ESP )
- kVA: 135
- kW: 108.00
- PRIME RATING ( PRP )
- kVA: 122
- kW: 97.60
- Standby Amper
- Standby Amper: 194.86
- ENGINE SPECIFICATIONS
- Engine: AKSA
- Engine Model: A4CRX54TI
- NO. OF CYLINDERS AND BUILD: 4 cylinders - in line
- BORE AND STROKE mm: 112 X 135
- TOTAL DISPLACEMENT L: 5,32
- Aspiration: Turbo Charged and AfterCooled
- COMPRESSION RATIO: 17.0:1
- RATED SPEED ( RPM ) d/dk: 1500
- OIL CAPACITY L: 14
- Standby Power ( kW/HP ): 125/169.95
- Prime Power ( kW/HP ): 113/153.64
- Fuel Type: Diesel
- Injection Type and System : Direct
- Type of Fuel Pump: PM pump
- Governor System: Electronic
- Operating Voltage ( Vdc ): 24 Vdc
- Cooling Method: Water Cooled
- Cooling Fan Air Flow ( m3 / min ): 111
- Coolant Capacity ( engine only / with radiator ) ( lt ): 6/48
- Air Filter: Dry Type
- Fuel Cons. Prime With %100 Load ( lt / hr ): 27.9
- ALTERNATOR SPECIFICATIONS
- Manufacturer: Aksa
- Alternator Made and Model: AK 4110
- Frequency ( Hz ): 50
- Power ( kVA ): 137,5
- DESIGN: Brushless
- Voltage: 400
- Phase: 3
- A.V.R.: AS460
- Voltage Regulation ( + / - ): 1,5%
- Insulation System: H
- Protection: IP22
- Rated Power Factor: 0.8
- WEIGHT COMP. GENERATOR ( Kg ): 492
- COOLING AIR ( m³ / min ): 30,84

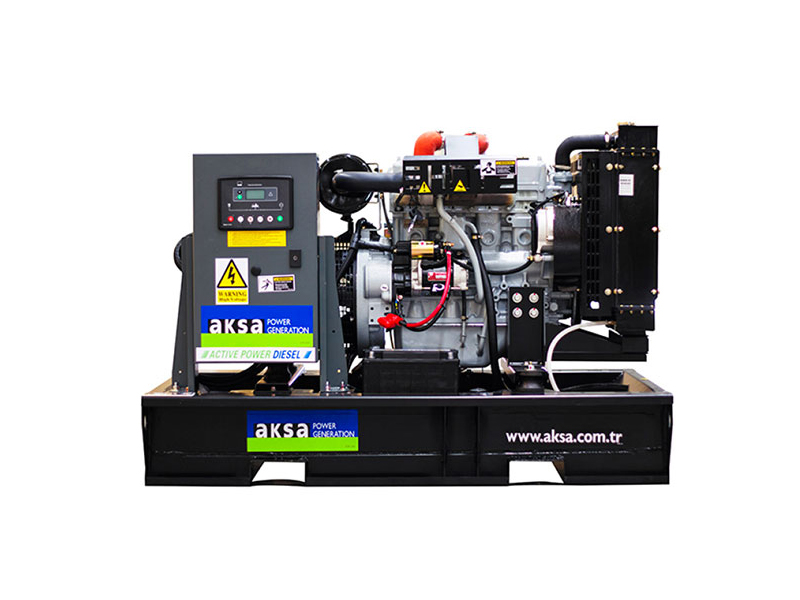

- Open Type
- CANOPY
- CANOPY: ACP 6A
- DRY WEIGHT ( kg ): 1790
- LENGTH ( mm ): 2600
- WIDTH ( mm ): 1058
- HEIGHT ( mm ): 1681
- TANK CAPACITY (lt.) (Lt.): 180
- STANDARD SPECIFICATIONS
- STANDARD SPECIFICATIONS:
- Heavy duty, water cooled diesel engine
- Radiator with mechanical fan
- Protective grille for rotating and hot parts
- Electric starter and charge alternator
- Starting battery (with lead acid) including rack and cables
- Engine coolant heater
- Steel base frame and anti-vibration isolators
- Spare external fuel tank (open set)
- Flexible fuel connection hoses
- Two bearing, class H alternator
- Industrial exhaust silencer and steel bellows supplied separately
- Static battery charger
- Manual for application and installation
- OPTIONAL EQUIPMENTS
- ENGINE:
- Oil heater
- ALTERNATOR:
- Anti-Condensation Heater
- Main line circuit breaker
- CONTROL SYSTEM:
- Earth fault, single set
- Charge Ammeter
- TRANSFER SWITCH:
- Three or four pole contactor
- Three or four pole motor operated circuit breaker
- OTHER ACCESSORIES:
- Main Fuel Tank
- Automatic or manual fuel filling system
- Manual oil drain pump
- Low and high fuel level alarm
- Enclosure: weater protective or sound attenuated
- Trailer
- Tool kit for maintenance
