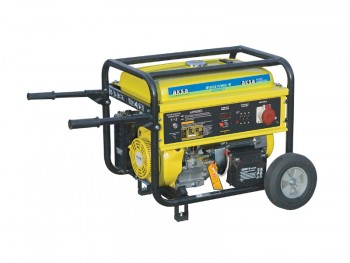

Portable Generator AAP 8000E3

User Rating: 5 / 5

Voltage

Standby Rating ( ESP )

Prime Rating ( PRP )

Standby Amper

Power ( kVA )

Features

FUEL GAUGE: Fuel gauge is on the fuel tank

OHV: Over Head Valve easy to maintenance

OIL LEVEL ALARM: When the oil level is low that the engine will not start. voltage of a generator.

AVR: AVR is a device often solid state, for controlling the output

WHEEL KIT: For easy transportation

CIRCUIT PROTECTOR: Circuit Protector is a device capable of carrying and interrupting both load and fault current upto a certain rating.

VOLTMETER: t is a gauge for out put voltage of generator set.

CHOKE SYSTEM: When the cold weather, choke system aid to operate theengine.

LARGE CAPACITY FUEL TANK: 15-25lt

General Specifications

3 Phase: 50 Hz

AC Rated Power kVA ( kW ): 7,5 (6)

Maximum Power kVA ( kW ): 8 (6,5)

AC Rated Current: 11

DC Rated Current: 8

Voltage ( V ): 230

Freuancy ( Hz ): 50

Phase N: 3

Power Factor: 0,80

Fuel Consumption ( L/sa ): 2,8

Run Time ( Hour ): 5

Noise Level ( dB ( A ) ): 76

Engine Specifications

Speed ( Rpm ): 3000

Power ( Hp ): 15

Cylinder N: 1

Cylinder Bulk ( mL ): 419

Fuel Type: Gasoline

Oil Capacity ( L ): 1,1

Fuel Tank Capacity ( L ): 30

Start Type: Electric

Dimensions And Weight

Alternator Characteristics

Dimensions And Weight ( mm )

Width: 810

Lenght: 540

Height: 575

Dry Weight ( kg ): 98
