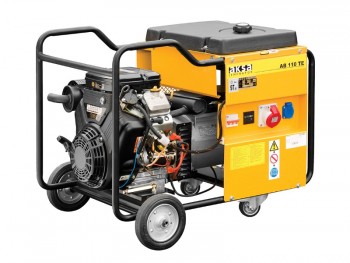

Portable Generator AB 150 TE
Portable Generator AB 150 TE
Prev
User Rating:
5
/
5
Please Rate
Vote 1
Vote 2
Vote 3
Vote 4
Vote 5
Portable Generator AB 150 TE
Voltage
Standby Rating ( ESP )
Prime Rating ( PRP )
Standby Amper
Power ( kVA )
Features
FUEL GAUGE:
Fuel gauge is on the fuel tank
OHV:
Over Head Valve easy to maintenance
OIL LEVEL ALARM:
voltage of a generator.
MAINTENANCE FREE BATTERY:
It is long life
WHEEL KIT:
For easy transportation
CIRCUIT PROTECTOR:
Circuit Protector is a device capable of carrying and interrupting both load and fault current upto a certain rating.
CHOKE SYSTEM:
When the cold weather, choke system aid to operate theengine.
LARGE CAPACITY FUEL TANK:
15-25lt
General Specifications
3 Phase:
50 Hz
AC Rated Power kVA ( kW ):
13 (10.4)
Maximum Power kVA ( kW ):
14.5 (11.6)
AC Rated Current:
18.8
Voltage ( V ):
400
Freuancy ( Hz ):
50
Phase N:
3
Power Factor:
0,80
Fuel Consumption ( L/sa ):
6.7
Run Time ( Hour ):
2
Noise Level ( dB ( A ) ):
78.8
Engine Specifications
Engine Brand:
Vanguard 23hp / 3864
Speed ( Rpm ):
3000
Power ( Hp ):
23@3600 rpm
Cylinder N:
2
Cylinder Bulk ( mL ):
627
Fuel Type:
Gasoline
Fuel Tank Capacity ( L ):
16
Start Type:
Electrical
Dimensions And Weight
Alternator Characteristics
Dimensions And Weight ( mm )
Width:
740
Lenght:
910
Height:
750
Dry Weight ( kg ):
160
