Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications.
All generator sets are factory build, and production tested.
- Pars Jeneratör
- Cummins Generator AC 66
Cummins Generator AC 66
- Cummins Generator
- General Characteristics
- Model Name: AC 66
- Frequency ( Hz ): 50
- Fuel Type: Diesel
- Engine Made and Model: CUMMINS - S3.8-G7
- Alternator Made and Model: Mecc Alte - ECP 32‐ 2M/4C
- Control Panel Model: DSE 6120
- Canopy: AK 40
- 3 Phase 50 Hz PF 0.8
- STANDBY RATING ( ESP ):
- Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source.
- ESP is in accordance with ISO 8528-1.
- Overload is not allowed.
- PRIME RATING ( PRP ):
- Applicable for supplying power to varying electrical load for unlimited hours.
- PRP is in accordance with ISO 8528-1.
- 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
- VOLTAGE
- Voltage: 400/231
- STANDBY RATING ( ESP )
- kVA: 66
- kW: 52.8
- PRIME RATING ( PRP )
- kVA: 60
- kW: 48.0
- Standby Amper
- Standby Amper: 95.27
- ENGINE SPECIFICATIONS
- Engine: CUMMINS
- Engine Model: S3.8-G7
- NO. OF CYLINDERS AND BUILD: 4 cylinders - in line
- BORE AND STROKE mm: 97 X 128
- TOTAL DISPLACEMENT L: 3.8
- Aspiration: Turbo Charged and AfterCooled
- COMPRESSION RATIO: 17.5:1
- RATED SPEED ( RPM ) d/dk: 1500
- OIL CAPACITY L: 11
- Standby Power ( kW/HP ): 64.9/87
- Prime Power ( kW/HP ): 59.6/79.9
- Block Heater QTY: 1
- Block Heater Power ( Watt ): 750
- Fuel Type: Diesel
- Injection Type and System: Direct
- Type of Fuel Pump: Bosh In-Line
- Governor System: Mechanic
- Operating Voltage ( Vdc ): 12 Vdc
- Battery and Capacity ( Qty / Ah ): 1x66
- Charge Alternator ( A ): 40
- Cooling Method: Water Cooled
- Cooling Fan Air Flow ( m3 / min ): 116
- Coolant Capacity ( engine only / with radiator ) ( lt ): 7/16.5
- Air Filter: Dry Type
- Fuel Cons Prime With %100 Load ( lt / hr ): 14.7
- Fuel Cons Prime With %75 Load ( lt / hr ): 11
- Fuel Cons Prime With %50 Load ( lt / hr ): 6.1
- ALTERNATOR SPECIFICATIONS
- Manufacturer: Mecc Alte
- Alternator Made and Model: ECP 32‐ 2M/4C
- Frequency ( Hz ): 50
- Power ( kVA ): 62.5
- DESIGN: 4 Pole, Brushless
- VOLTAGE: 400
- Phase: 3
- A.V.R.: DSR
- Voltage Regulation ( + / - ): 1
- Insulation System: H
- Protection: IP23
- Rated Power Factor: 0.8
- WEIGHT COMP. GENERATOR ( Kg ): 212
- COOLING AIR ( m³ / min ): 15.7

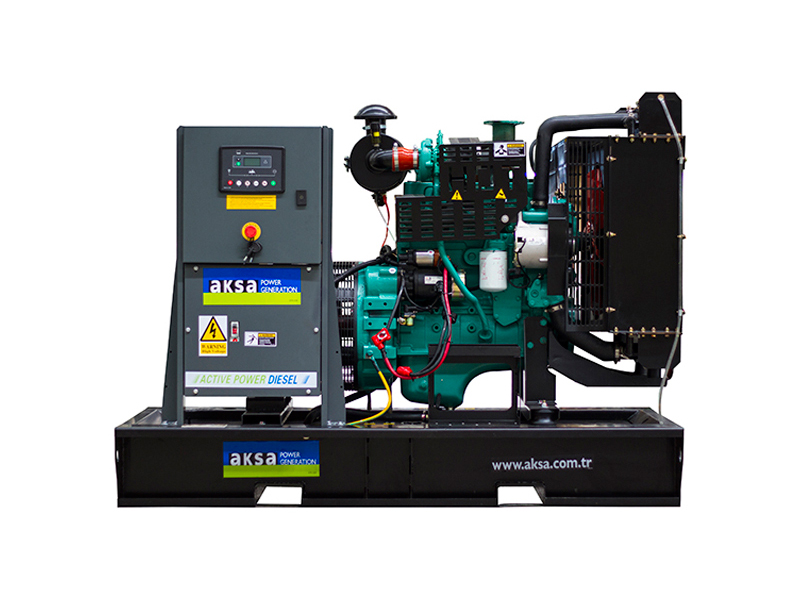

- Open Type
- DRY WEIGHT ( kg ) ( kg ): 1070
- LENGTH ( mm ): 2150
- WIDTH ( mm ): 1050
- HEIGHT ( mm ): 1516
- TANK CAPACITY ( lt ) ( Lt ): 240
- CANOPY

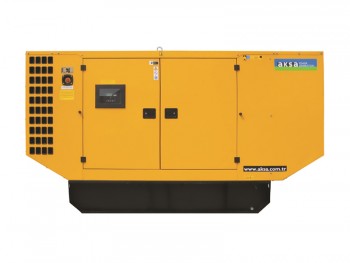

- CANOPY: AK 40
- DRY WEIGHT ( kg ) ( kg ): 1320
- LENGTH ( mm ): 3100
- WIDTH ( mm ): 1113
- HEIGHT ( mm ): 1811
- TANK CAPACITY ( lt ) ( Lt ): 240
- STANDARD SPECIFICATIONS
- STANDARD SPECIFICATIONS:
- Water cooled, Diesel engine
- Radiator with mechanical fan
- Protective grille for rotating and hot parts
- Electric starter and charge alternator
- Starting battery (with lead acid) including rack and cables
- Steel base frame and anti-vibration isolators
- Base frame design incorporates an integral fuel tank and anti-vibration isolators
- Flexible fuel connection hoses
- Single bearing, class H alternator
- Industrial exhaust silencer and steel bellows supplied separately
- Static battery charger
- Manual for application and installation
- OPTIONAL EQUIPMENTS
- ENGINE:
- Fuel-Water Seperator Filter
- Low water level alarm
- Oil heater
- ALTERNATOR:
- Anti-Condensation Heater
- Over sized alternator
- Main line circuit breaker
- CONTROL SYSTEM:
- Remote annunciator panel
- Earth fault, single set
- Charge Ammeter
- TRANSFER SWITCH:
- Three or four pole contactor
- Three or four pole motor operated circuit breaker
- OTHER ACCESSORIES:
- Main Fuel Tank
- Automatic or manual fuel filling system
- Manual oil drain pump
- Low and high fuel level alarm
- Residential silencer
- Enclosure: weater protective or sound attenuated
- Duct adapter ( on radiator)
- Inlet and outlet motorised louvers
- Inlet and outlet acoustic baffles
- Trailer
- Tool kit for maintenance
- 1500/3000 hours maintenance kit
- Double wall chassis
- Supplied with oil and coolant - 30 °C
- Battery isolating switch
